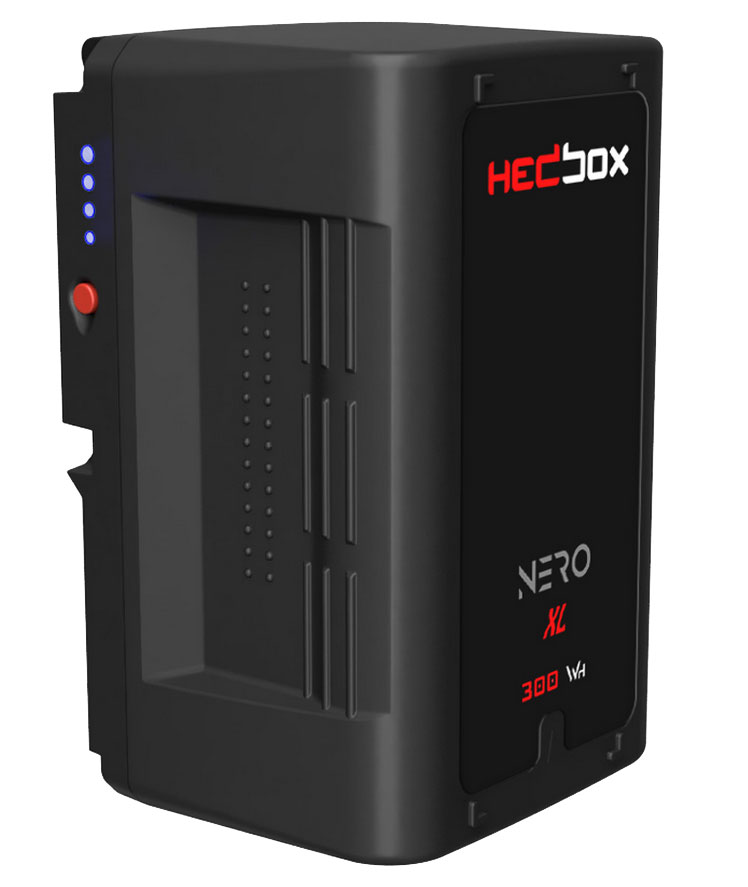

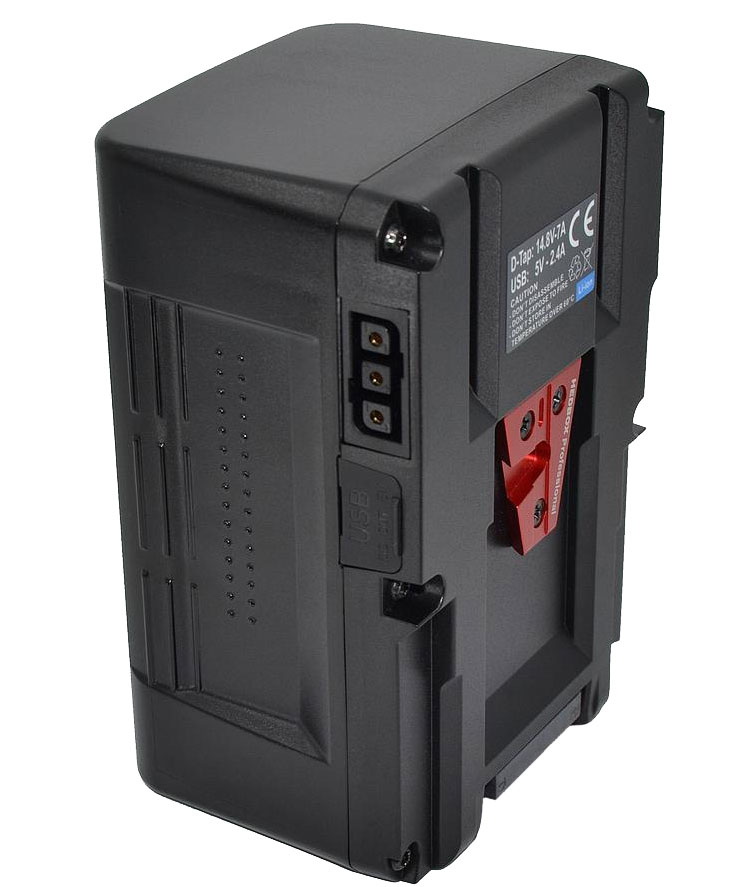

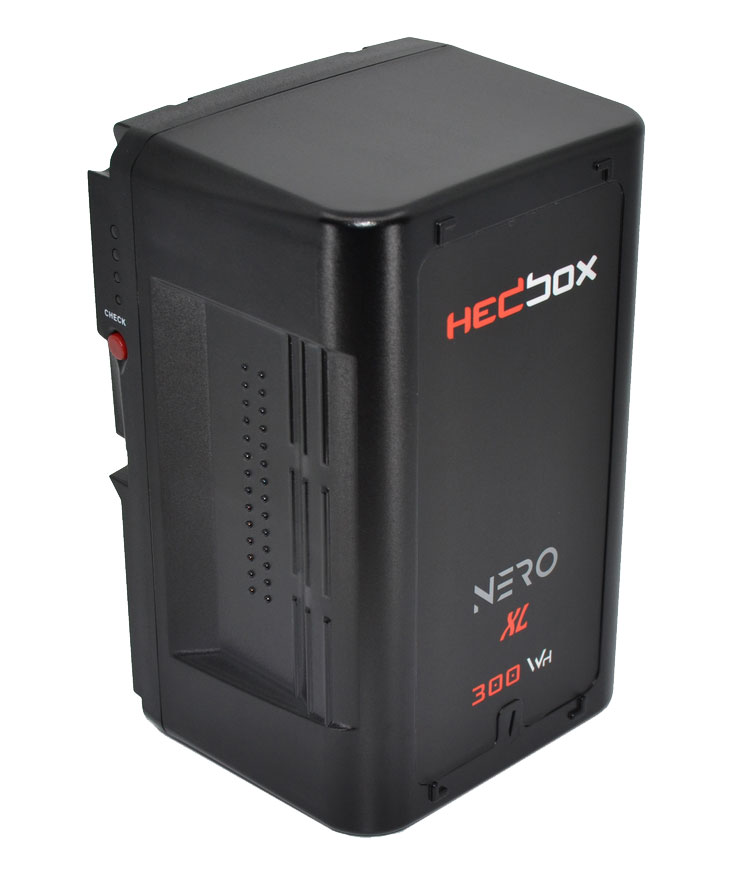

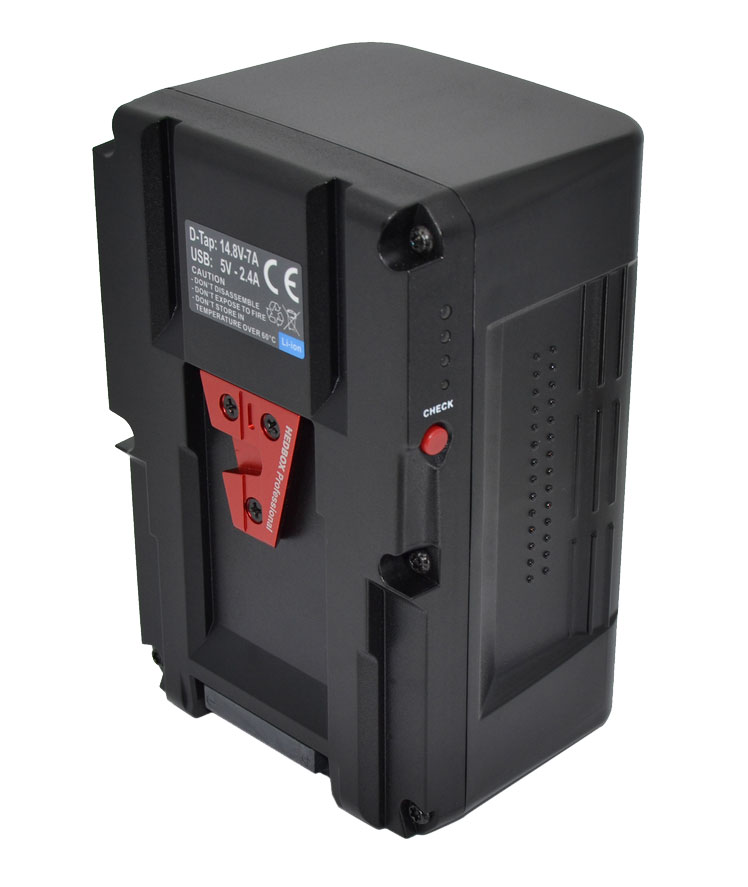

HEDBOX NERO XL 300Wh V-Mount

HEDBOX NERO SX The new NERO SX V-Mount battery with High Performance and high safety designed specially for RED Cameras. The NEW and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.Compared to all the other Battery Brands this new advanced system not only makes the NERO batteries much safer for daily professional use but also for transportation.NERO SX represents the smallest cine V-Mount Battery in the NERO family range that is fully compatible with all RED Family Cameras. Through it’s additional D-Tap DC output the NERO SX can deliver power to all professional devices. An extra USB power output allows powering of all devices that need DC 5V DC.HEDBOX NERO SX is fully compatible with all RED Family Cameras.Built-in data communication chip that is RED protocol ready. Provide NERO SX battery syncing compatibilities with the RED Camcorder to display the exact power percentage on their LCD screen.NERO use NEW and revolutionary Cells Framing Construction System, that provide extra security and stability to the inner battery cells. With this new advance system NERO is much more safe for transportation and daily operational use, compering to all other Battery Brands.NERO SX contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.NERO SX has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.Through it’s additional integrated D-Tap DC Power output the NERO SX can deliver 14.8V, 148W/10A to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO SX – Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V – Mount RED Cameras Compatible ( V-lock holder )Power Meter:  Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 8Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity:  6700 mAh / 98 Wh – On AIR Transport CertificationMaximum Load: 10A / 145WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 41 mmOperating Temperature:  –20°C to +45°C Weight: 560 g

HedBox NERO MX The new NERO MX V-Mount battery with High Performance and high safety designed specially for RED Cameras. The NEW and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells.Compared to all the other Battery Brands this new advanced system not only makes the NERO batteries much safer for daily professional use but also for transportation.NERO MX represents the medium cine V-Mount Battery in the NERO family range that is fully compatible with all RED Family Cameras. Through it’s additional D-Tap DC output the NERO MX can deliver power to all professional devices. An extra USB power output allows powering of all devices that need DC 5V DC. HedBox NERO MX is fully compatible with all RED Family Cameras.Built-in data communication chip that is RED protocol ready. Provide NERO MX battery syncing compatibilities with the RED Camcorder to display the exact power percentage on their LCD screen.NERO use NEW and revolutionary Cells Framing Construction System, that provide extra security and stability to the inner battery cells. With this new advance system NERO is much more safe for transportation and daily operational use, compering to all other Battery Brands.NERO MX contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%.NERO MX has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting.Through it’s additional integrated D-Tap DC Power output the NERO MX can deliver 14.8V, 148W/10A to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO MX – Professional HIGH LOAD Lithium-Ion Battery PackMount Type:  V – Mount RED Cameras Compatible ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 16Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 10400 mAh / 150 WhMaximum Load: 13A / 190WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 60 mmOperating Temperature: –20°C to +45°C Weight: 880 g

Hedbox NERO S The new NERO series of Hedbox stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells. Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation. NERO S represents the smallest cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO S Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V-Mount ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 8Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 6700 mAh / 98 Wh - On AIR Transport CertificationMaximum Load: 10A / 145WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 41 mm Operating Temperature: –20°C to +45°C Weight: 560 g

Hedbox NERO M Hedbox NERO M represents the medium cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO S can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. NERO M contains a built in 4-LED power meter that, at the press of a button, displays the remaining battery percentage at 100%, 75%, 50%, or 25%. NERO M has a standard V-mount connection with a high-quality lightweight aluminum V-wedge to ensure for safe and reliable mounting. Through it’s additional integrated D-Tap DC Power output the NERO M can deliver 14.8V, 118W/8A to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO M - Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V-Mount ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 16Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 10400 mAh / 150 WhMaximum Load: 13A / 190WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 60 mmOperating Temperature: –20°C to +45°CWeight: 880 g

Hedbox NERO L The new HEDBOX NERO series stands for High Performance and High Safety Design. The new and revolutionary Cells Framing Construction System provides extra security and stability to the inner battery cells. Compared to all the other Battery Brands this new advance system not only makes the NERO batteries much safer for daily professional use but also for transportation. NERO L represents the Large cine V-lock Battery in the NERO family range. Through it’s additional D-Tap DC output the NERO L can deliver power to all professional devices. An extra USB power output allows the charging of mobile phones, tablets or other accessories using one single battery. Technical data Model: NERO L - Professional HIGH LOAD Lithium-Ion Battery PackMount Type: V-Mount ( V-lock holder )Power Meter: Blue Color 4-LED Power Monitor ( Display 100%, 75%, 50%, or 25% SOC capacity )Product Color: Dark GreyBat. Cell Model: LG High Load Stand 18650 x 16Bat. Cell Chemistry: Lithium-IonOutput Voltage: 14.8V DCMinimum Out Voltage: 10.0V DC ( Auto Power Control )Capacity: 13400 mAh / 195 WhMaximum Load: 13A / 190WUSB Output: 5V, 12W / 2.4A max ( Dust Protection Cover )D-Tap Output: 14.8V, 100W / 6.8A max ( Dust Protection Cover )Internal Protection: Cells Framing Construction System Maximum Charge: 16.8V / 3.0ADimensions (WxHxD): 152 x 96 x 60 mm Operating Temperature: –20°C to +45°CWeight: 970 g
