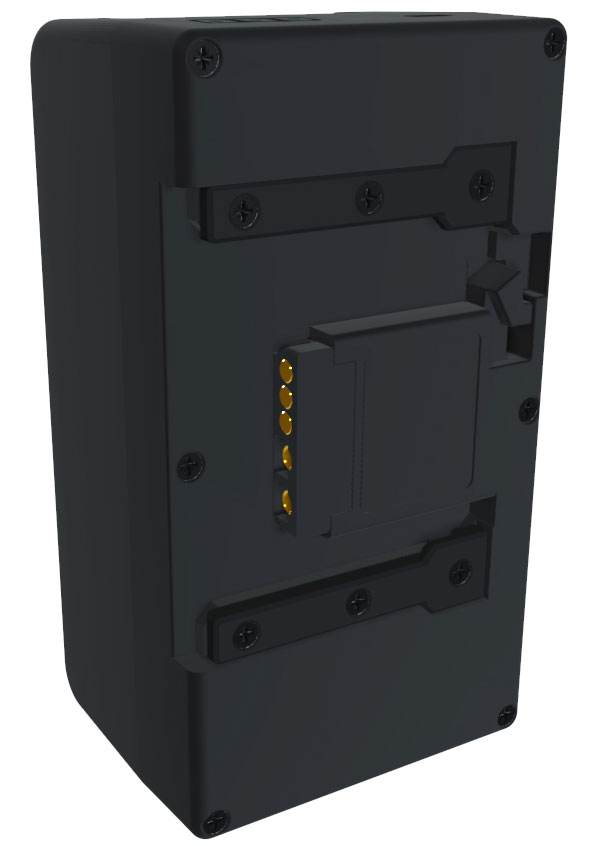

For the ultimate on-board runtime look no further than the BL-350 B-Lok battery manufactured by Hawk-Woods to support ARRI's new B-Mount lock in system. Equipped with the latest high draw Li-Ion battery cells and using Hawk-woods long standing solid case design these batteries will not let you down!
The BL-350 outputs a straight 26 volts to suit all ARRI equipment new and old with the charged voltage peaking at 29.4v. All B-Lok batteries in the family provide 2x power outputs for powering further equipment around the camera rig, as standard these will be a multi-directional 12v D-Tap and a USB-C. The batteries will also provide direct communications with ARRI equipment allowing the user to select time remaining or percentage remaining.
Core SWX MACH-Q4MBi
Core’s Micro Intelligent Charger Series continues to be the most advanced in the industry. Now with the inclusion of Adaptive Charge Control (ACC) and SafeFly Standalone Discharge function, the new Mach4 Micro chargers are at the pinnacle of technology. An upgraded charge circuit design now allows you to four 98wh packs in less then 1hr40min. The units have an all aluminium build and made in the USA.
Adaptive Charge Control(ACC): Core SWX’s new Adaptive Charge algorithm’s can improve battery longevity and performance up to 30% over the life of the pack. The new ACC algorithm evaluates the battery pack based on age, cycle count, and last full charge capacity, to determine the appropriate charge routine for the pack. While in charge mode, the charger continually monitors the pack for feedback during the charge process to adjust as needed. This process insures top performing packs are charged as fast as possible, while older packs are charged efficiently while accounting for changes in cell performance overtime to minimize degradation and capacity loss.
SafeFly Standalone Discharge: In addition to battery management, the Mach4 Micro Chargers include SafeFly mode. The updated chargers add standalone discharge when AC mains power is not present. This feature provides additional value and allows you to carry one charging system for both charge and discharge of the battery packs. With one touch of the onboard membrane button console or via the Voltbridge App, the chargers will discharge all packs connected to under 30%. By initiating SafeFly mode when the charger is connected to AC mains, the charger with either discharge or charge packs to 30%, to insure all packs are ready for shipment.
Features
Four position charger, 4A Simultaneous rapid charge, Adaptive Charge ControlFour independent charge bays with Simultaneous chargingApproximately 90min. charge time for four 98Wh batteriesRed and green status LEDs with diagnostic LCD and Test functionCompatible with Voltbridge and Voltbridge Mesh Enterprise90-240 VAC worldwide compatible input voltageRecessed carry handleQuick Charge Current: 4A SimultaneousDischarge Current: Up to 2A per channelLCD: 4x20 Character BacklitInput Voltage: 90-240VAC 50/60Hz
Hawk-Woods BL-2X2
The Hawk-Woods BL-2X2 is a 2-Channel simultaneous charger for B-Lok (B-Mount) batteries. This 2.5Ah charger will charge up 2 of these high speed camera batteries within four hours.
Weight: 1.38kg Size: 11 x 18 x 14 cm Capacity: 2.5Ah
Hawk-Woods BL-4X4
SKU: BL-4X4
The Hawk-Woods BL-4X4 is a 4-Channel simultaneous charger for B-Lok (B-Mount) batteries. This 2.5Ah charger will charge up to four of these high speed camera batteries within four hours. Technical data:
Model: BL-4X4Type: B-LokWeight: 2.22kgSize: 22 x 18.5 x 15 cmCapacity: 2.5Ah
SWIT HB-A290B
SWIT HB-A290B is 290Wh Battery with 28.8V B-Mount(21.6-33.6V) and 16V D-tap, USB-C, USB-A.
Completely compatible with ARRI camera and lighting systems. The high voltage helps to reduce current on high power devices, reliable and longer life time. Constant high load output for Cine cameras, camera-top gears, and high power light fixtures. Provides 2x D-tap with regulated 16V output for all kinds of camera-top gears, Max load 60W/3.8A each. Provides 1x USB-A 5V/2A and 1x USB-C 60W input and 60W output. You could charge smart phones, tablets and laptops on the filmset, and you can also charge the battery by USB-C chargers, within 5.5 hours.
Features
28.8V ARRI Standard B-mount290Wh/10.05Ah high capacity250W, 10A constant high load100W/3A fast chargingD-tap 16V reg. output ×2USB-C 60W input and outputUSB-A 5V/2A outputOLED power info displayBuilt-in LED flash lightStrong 1.2m drop off proofMultiple circuit protections
Technical data
Voltage: 28.8V (21.6-33.6V)Capacity: 290Wh/10.05AhConstant load: 250W / 10AMax charging current: 100W / 3A fast chargingMount Type: B-mountD-tap x2: 16V regulated, 60W 3.8A loadUSB-C: 60W out 5V/9V/12V/15V/20V(Max) 3A / BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP / 60W in 15V/20V(Max) 3AUSB-A: 10W, 5V/2ACharging Temperature: 0-40°C Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)Net weight: Approx 1.52kgDimensions: 144 x 100 x 79mm
Core SWX Helix Max 360 B-mt
SKU: HLX-360MXB
Core SWX Helix Max 360 B-mt is a Native Dual Voltage lithium ion battery with a robust load output - 367Wh B-Mount. Helix360max, 14.4v/28.8v, 367wh ARRI B-mount compatible battery pack, LCD and w/ ptap and USB,, 20A Max Load.
Helix Max battery packs are able to communicate remaining runtime to the camera’s display. By transmitting the same information displayed on the runtime LCD to the camera, operators can view important data such as voltage, battery runtime, and percentage directly on their camera. This feature not only saves time by eliminating the need to check the battery’s status manually, but it also ensures that camera operators always have the most up-to-date information about the battery’s performance. With this level of communication, professionals can work with greater efficiency and accuracy, knowing they have a reliable power source to support their creative vision.
Native Dual Voltage lithium ion battery with a robust load outputCapacity: 367whOperational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 8,89 cm x 16 cm x 9,14 cmWeight: 1,63 KGLoad: continuous 20A @ 16.8v and 10A @ 33.6v
Features
2K Cycles 2Y WarrantyCamera CommunicationCompatible ChargingDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingStorage ModeUSB PowerWraparound LED
Core SWX HLX-150MXB
Core SWX Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.
Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.
Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.
Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs.
Features
14.4v/28.8v, 147wh battery pack, LCD and w/ ptap and USB, B-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDPTap for aux output and 5v USB for powering mobile devicesAluminum release lever insures long term durability2k cycles/2 year warranty
Technical data
Capacity: 147Wh (14.8v, 9.9Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89,92 mm x 118,11 mm x 68,6 mmWeight: 1 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: B-mount, Compatible with ARRI B-mount
Hawk-Woods BL-150
The bigger brother to the BL-98 is the flight safe BL-150 B-Lok battery manufactured by Hawk-Woods to support ARRI's new B-Mount lock in system. Equipped with the latest high draw Li-Ion battery cells and using Hawk-woods long standing solid case design these batteries will not let you down! The BL-150 outputs a straight 26 volts to suit all ARRI equipment new and old with the charged voltage peaking at 29.4v. All B-Lok batteries in the family provide 2x power outputs for powering further equipment around the camera rig, as standard these will be a multi-directional 12v D-Tap and a USB-C. The batteries will also provide direct communications with ARRI equipment allowing the user to select time remaining or percentage remaining.
Technical data
Mount Type: B-Mount Chemistry: Lithium-Ion () Weight: 1.15kg Size: 8.4 x 15.4 x 6.4 cm Nominal Voltage: 26v Wattage: 150Wh Capacity: 5.8Ah milliamp Hour: 5769mAh Number of D-Taps: 1 Number of USB-C: 1
Core SWX Helix Max 275 B-mt
SKU: HLX-275MXB
Core SWX Helix Max 275 B-mt is a Native Dual Voltage lithium ion B-mount battery with a robust load output.
Core SWX Helix Max is a game-changing on-board battery system that revolutionizes the cinematic industry with its cutting-edge power capabilities. With a focus on powering cinematic camera and lighting equipment, Helix Max is the most complete battery system ever offered to the industry, featuring a Native Dual Voltage, 14v/28v output, providing better designed and performing on-board high voltage solutions.
The Native Dual Voltage platform is an advanced power delivery system, which allows Helix Max packs to be both compatible with 14v equipment and chargers, as well as high voltage cinematic camera equipment and lighting. Whether you choose V-mount, G-mount or B-mount, this cutting-edge technology enables the Helix Max to output up to 33.6v, which is within the top range of high voltage acceptance, resulting in less current draw, less heat generation, and longer operational runtime. With this platform, Helix Max can provide up to 12A peak on high voltage and 24A peak on low voltage devices, making it the most efficient and versatile power solution for cinematic equipment and lighting. It allows for 100% efficient power transmission since there is no power regulation on the battery mains, ensuring that your equipment runs optimally and without interruption. Whether you’re shooting on location or in the studio, Helix Max’s Native Dual Voltage technology ensures that you have the power you need to get the job done with maximum efficiency and performance.
Features
2K Cycles 2Y WarrantyCamera CommunicationDual Voltage OutputHigh Current DeliveryHigh Voltage EfficiencyRFIDRugged HousingRuntime LCDStorage ModeUSB PowerWraparound LED
Technical data
Capacity: 275wh Operational Voltage: Native Dual Voltage, DC 11v-16.8v/DC 22v-33.6v Size: 8,89 cm x 16 cm x 7 cm Weight: 1,40 kg Load: continuous 20A @ 16.8v and 10A @ 33.6v
Core SWX HLX-9MXB
Helix is the most complete on-board battery system ever offered to the cinematic industry. The system encompasses all the features of Hypercore NEO, with the added function of dual 14v/28v simultaneous voltage output, answering the call for better designed and performing, on-board high voltage solutions.
Leveraging a proprietary, patented technology, Helix is ultra-efficient, providing nearly lossless power transmission at a 99% efficiency rate to high voltage operating equipment. Helix’s unique design allows it to output up to 33.6v, within the top range of high voltage acceptance, thus drawing less current, creating less heat and extending both operational runtime and product longevity.
Now even more robust with a maximum output of 20A(10A at 28.8v HV), the Helix Max series is capable of handling the most demanding power builds in the cinema industry. Available in 98wh and 150wh models, the packs will provide ample runtime in most camera and lighting applications but can also be used in conjunction with a Helix Hotswap plate to double available battery capacity and extend runtimes.
Offered in V-mount and 3-Stud, and with the inclusion of ARRI’s B-mount protocol, the Helix Max series can cover all your powering needs.
Features
14.4v/28.8v, 98wh battery pack, LCD and w/ ptap and USB, B-mount, 20A Max Load - B-mountLithium-ion battery chemistryWide range, dual voltage output from 11v to 33.6vV-mount with SMBUS camera/charger communicationSuper robust build with 20A current delivery at 16.8v(LV) and 10A delivery at 33.6v(HV)Runtime LCDP-Tap for aux output and 5v USB for powering mobile devicesAluminum release lever insures long term durability2k cycles/2 year warrantyUN38.3 certified for ease of travel and shipping without limitations
Technical data
Capacity: 98Wh (14.8v, 6.6Ah)Operational Voltage: Dual Voltage, DC 11v-16.8v/DC 22v-33.6vSize: 89,92 mm x 118,11 mm x 60,45 mmWeight: 0,8 kgLoad: 20A @ 16.8v, 10A @ 33.6vMount Type: B-mount, Compatible with ARRI B-mount
Hawk-Woods BL-98
Welcoming the smallest capacity B-Lok battery manufactured by Hawk-Woods to support ARRI B-Mount lock in system is the BL-98 battery. Equipped with the latest high draw Li-Ion battery cells and using Hawk-woods long standing solid case design these batteries will not let you down! The BL-98 outputs a straight 26 volts to suit all ARRI equipment new and old with the charged voltage peaking at 29.4v. All B-Lok batteries in the family provide 2x power outputs for powering further equipment around the camera rig, as standard these will be a multi-directional 12v D-Tap and a USB-C. The batteries will also provide direct communications with ARRI equipment allowing the user to select time remaining or percentage remaining.
Technical data
Mount Type: B-Mount Chemistry: Lithium-Ion () Weight: 770g Size: 8.4 x 15.4 x 5.3 cm Nominal Voltage: 26v Wattage: 98Wh Capacity: 3.8Ahmilliamp Hour: 3846mAh Number of D-Taps: 1 Number of USB-C: 1
PLN 2,244.14*
net: PLN 1,824.50
Pay with:
We ship with:
Fast shipping
Buy VAT exempt with your valid VAT EU ID
Purchase comfortable on account
Showroom in Warsaw +48 299 06 61
