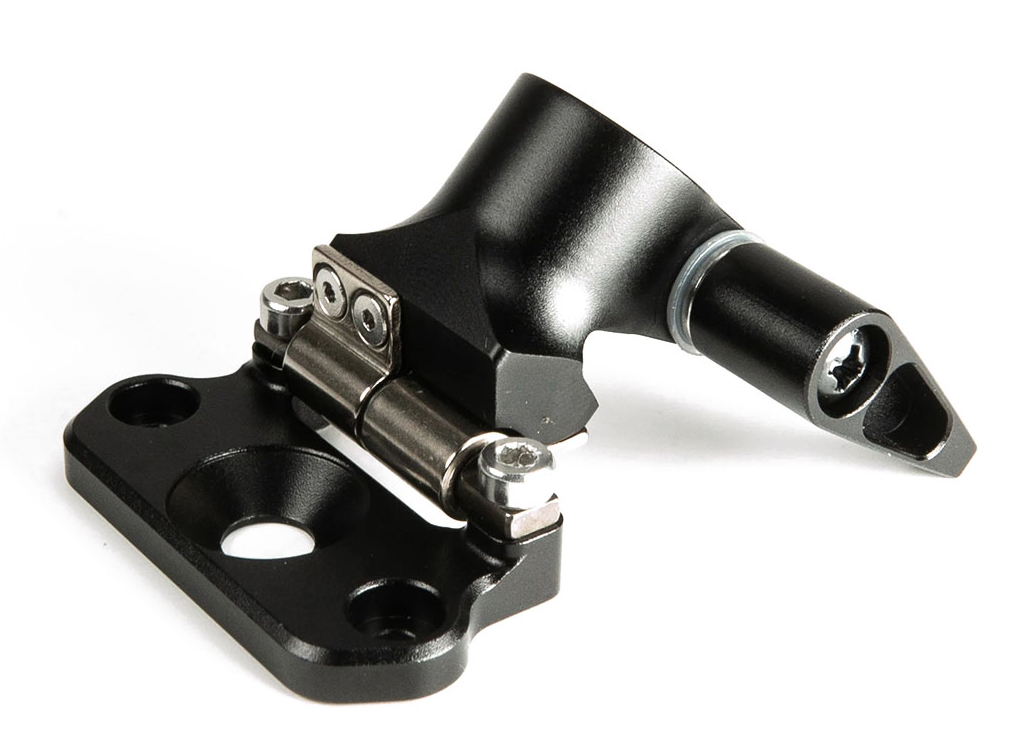

The monitor attaches to the mount using a quick release 13mm plug, making it compatible with any 13mm mount accessories in the Freefly ecosystem.
Two types of mounting hardware are included. The recommended method is 2x M3 fasteners, which keeps it from rotating when installed to the top, bottom or sides of the camera (as needed). But we also included a 1/4" 20 mount for quick install or universal mounting to other items with 1/4" 20 threaded holes.
Freefly Ember S5K
Ember was designed to be the most efficient high speed camera ever. It’s small, light, and insanely fun to use. FREEFLY Ember is unique in that it can record continuous high speed footage with no ram based clip limit since it records directly to a 4TB internal SSD. Ember is as small and simple as possible and focus on an app based workflow. Its faster, easier, and much more powerful.
A magical new way to capture high speed imagery. All new Sensor, Chassis, and App designed to go from capture to share as quickly as possible. Ember is a 100mm cube, 800grams, and can shoot 4K 800fps, 5K 600fps. With Ember you simply press the record button, roll as long as you like, then share your best shots right from the app. Shooting high speed is now just like shooting anything else, push record to start and stop, and Ember captures everything to solid state memory - as simple... as that.
The Ember app for iOS means you can go from capture to sharing in seconds.
Features
5K max resolution at 600fps4K 800fpsGpixel sensorFast iOS based app workflowApple ProRes CodecGlobal ShutterWireless ControlUSB 3.2 Type C
Technical dataS35 Gpixel Sensor
=4K and 5K recording mode10bit Apple ProRes CodecActive EF compatible lens mount or universal locking lens mount (tested lenses)Weight: With Active EF compatible lens mount: 830 gDimensions: With Active EF compatible lens mount: 100 mm x 104 mm x 110 mm (WHD)4TB Drive optionMaximum shooting capacity for EmberActual formatted data capacity - 3,980GBCapture time (max)5120 x 2880, 600fps - 36min (1,296,000 frames, 15hrs of playback at 24fps)4096 x 2160, 800fps - 45min (2,160,000 frames, 25hrs of playback at 24fps)2.56TB drive optionHigh endurance drive rated for 80 Petabytes or 10,000 hours of continuous recordingIdeal for heavy use of Ember Pre-RecordActual formatted data capacity - 2,534GBCapture time (max)5120 x 2880, 600fps - 23min (828,000 frames, 10hrs of playback at 24fps)4096 x 2160, 800fps - 29min (1,392,000 frames, 16hrs of playback at 24fps)
In the box
All Ember S5K bodies ship with the following accessories1 x Ember S5K camera body1 x Rear accessory mount stand-offs (pair)1 x USB C-C 3.0 Cable1 x D-Tap-Ember Power Cable8 x M3 x 10mm SHCS fasteners for accessory mountsWe offer two pre-installed internal SSD optionsEmber S5K (Active EF Lens Mount, 4TB) - 950-001451 x Active EF compatible lens mount, pre-installed1 x Internal 4TB SSD (pre-installed, user upgradable but not on-set swappable)Ember S5K (Active EF Lens Mount, 2.56TB pSLC) - 950-001521 x Active EF compatible lens mount, pre-installed1 x Internal 2.56TB pSLC SSD (pre-installed, user upgradable but not on-set swappable)
Freefly Ember Cheese PlateSKU: 910-00715
Utilizing the mount brackets included with Ember, it attaches seamlessly while still leaving enough space for heat dissipation on the camera. With a variety of mounting options, you can attach virtually any existing battery plate (including the FXLION Nano V-Mount), memory setup, or whatever you please.
There’s also a full row of side facing 1/4”-20s to allow rigging in the horizontal plane.
Features
Includes 1/4”-20, 3/8”, and M3 mounting pointsAttaches to the brackets included with the Ember camera using M3 fastenersWorks with most standard battery plate mount hole patterns
