Core SWX Direct Connect for APX-360HV HLX-2HV-DC

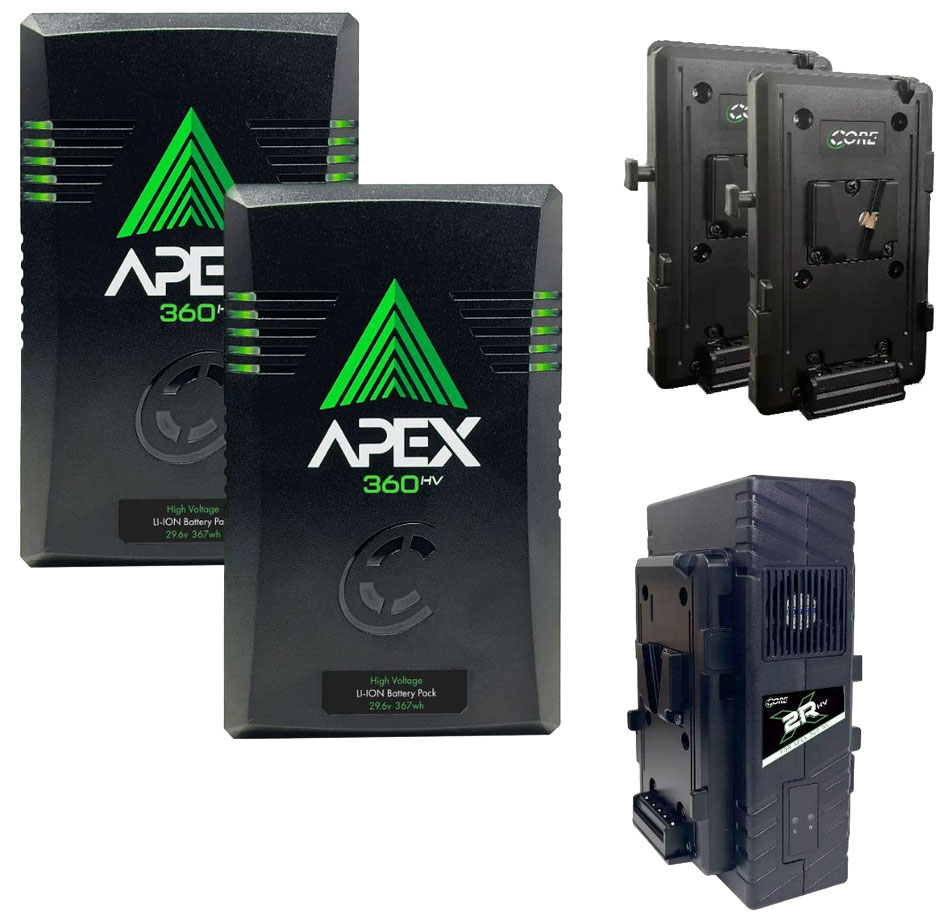

Core SWX Apex 360 HV Kit SKU: APX-360HVK The APX-360HV offers a 367wh Lithium Ion v-mount solution capable of outputting up to 12A continuously as well as providing extended runtimes. With Apex the production team can focus on the video production rather than restricting light usage during the production because of limiting onboard powering options. And with Apex’s continuous 12A load output, the user will enjoy a more “true” runtime while operating the high power LED lighting systems. APX-360HV Capacity: 367Wh (29.6v, 12.75Ah)Operational Voltage: DC 22v-33.6vSize: 8,89 cm x 16,00 cm x 9,65 cmWeight: 1,63 kgLoad: 12A ContinuousMount type: Helix V-mount GP-X2RHV Input: 100V-240VAC 50/60HzCharge current: One pack 2.6A @33.6v, Two packs simultaneous at 1.3ASize: 11,43 cm x 13,97 cm x 7,62 cmWeight: 0,59 kgMount Type: Helix V-mount

Core SWX APEX 360 HV SKU: APX-360HV Designed to finally answer the call for a tailored on-board battery solution, the Apex HV battery packs are the ideal power solution for high power LED lighting. The APX-360HV offers a 367wh Lithium Ion v-mount solution capable of outputting up to 12A continuously as well as providing extended runtimes. With Apex the production team can focus on the video production rather than restricting light usage during the production because of limiting onboard powering options. And with Apex’s continuous 12A load output, the user will enjoy a more “true” runtime while operating the high power LED lighting systems. The high voltage Apx360hv is capable of delivering even more power under lower current requirements allowing for a more efficient, cooler operation of LED lights which accepts higher voltages. With further high voltage LED lighting products continuing to be released the APX-360HV pack future proofs your battery investment. As well, the Apex HV option utilizes Core’s patented Helix system pin set so inadvertently placing the high voltage pack on 14v equipment is of no concern. No longer settle for battery packs designed for camera systems to power your lighting, choose Ape Technical data Capacity: 367 Wh (29,6 V / 12,75 Ah) Operational Voltage: DC 22v-33,6v Size: 8,9 cm x 16 cm x 2,5 cm Weight: 1,6 kg Load: 12A Continuous Mount type: Helix V-Mount
