Blackmagic ATEM Mini Extreme ISO G2
PLNÂ 9,578.63
Available, delivery time: 3-5 days
Blackmagic ATEM Mini Extreme ISO G2
SKU: SWATEMMINICEXTISOG2

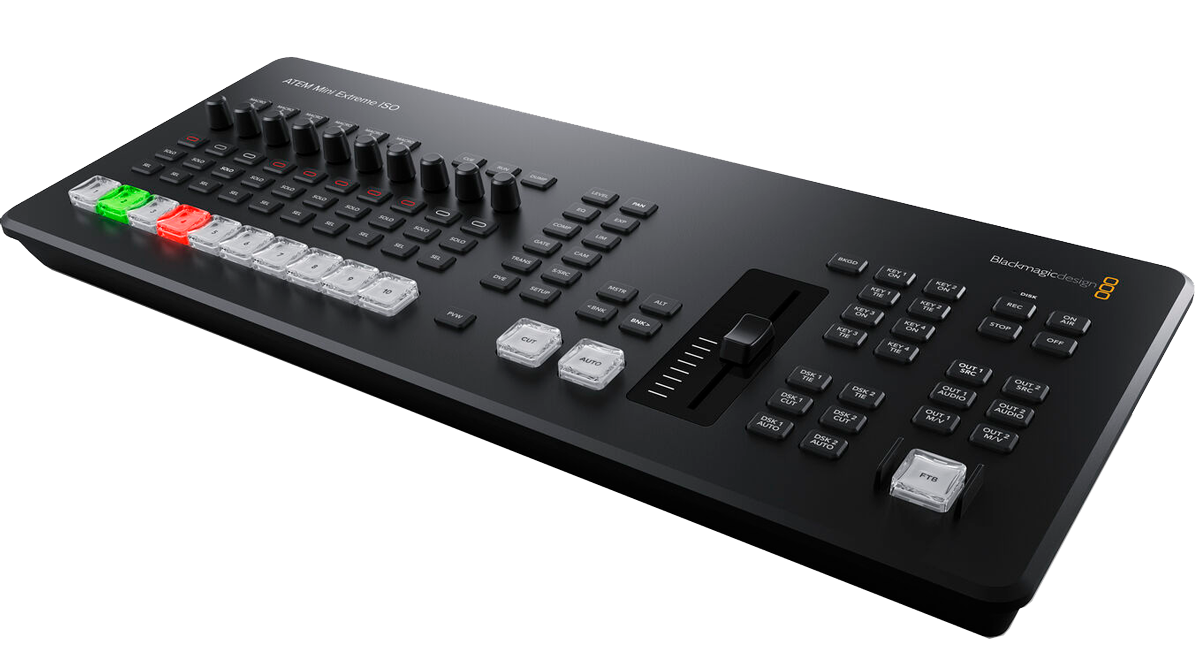

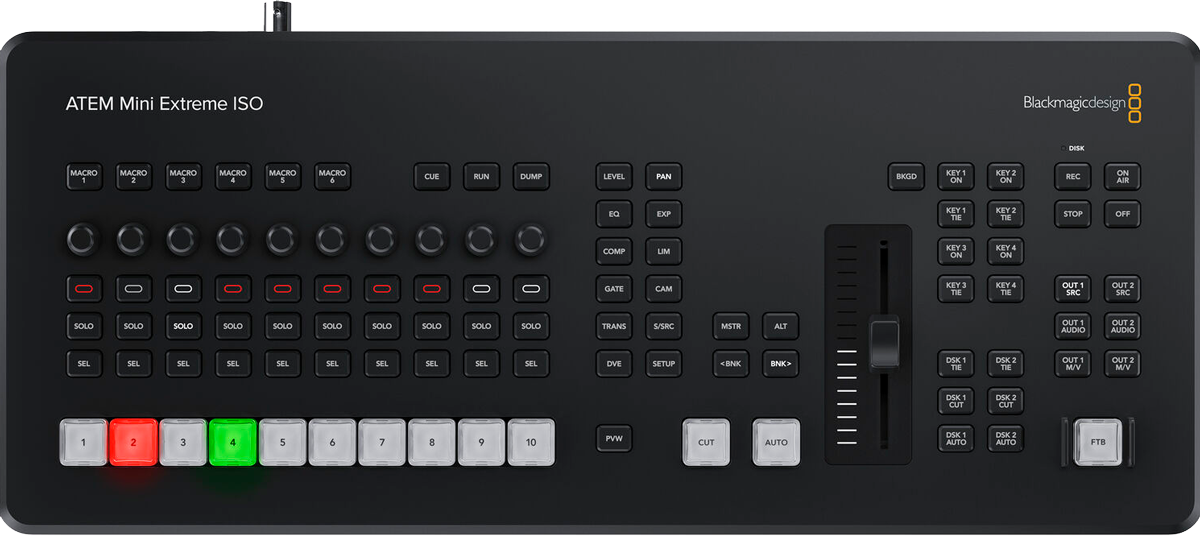

The ATEM Mini Extreme ISO G2 is ideal for building a high-end broadcast studio as it offers all the ATEM Mini features plus extra professional features. It has a professional style control panel with amazing input buttons. It has 3 independent video outputs that can be routed. The built-in Thunderbolt offers live video capture and playback, enabling real-time effects software or DaVinci Resolve for live action replay.
The CFexpress card can also be accessed over a customer’s network via 10G Ethernet. For audio, it has balanced XLR in, MADI in and a Fairlight status display with menus. There's also a headphone socket for audio monitoring. Customers even get 200 frames of animation in the media pool.
With Thunderbolt on the Blackmagic ATEM Mini Extreme ISO G2 model, customers get fill and key playback, capture, Ethernet access to the CFexpress card and trickle power all with a single computer connection. This means customers can use DaVinci Resolve as a full live-action replay system.
DaVinci Resolve can show a live video input of the switcher, and when customers press the Point of Interest (POI) button, DaVinci will switch to playing all 8 ISO files so customers can select cameras and run replays. Customers can then preroll and sequence multiple cameras in the same replay, with optical flow speed changes. Then load their replay into the timeline and upload it to social media. No traditional replay system can do that.
Connections
- Total Video Inputs: 9
- Total Outputs: 4
- Total Aux Outputs: 4
- SDI Rates: 1.5G, 3G
- HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
- HDMI Video Outputs: 3
- HDMI Program Outputs: 3
- Total Audio Inputs: 2x XLR Combo with phantom power, 1 x BNC 32 Ch MADI digital audio
- Total Audio Outputs: 1x 6.35mm headphone jack
- Timecode Connection: None
- Reference Input: None
- Video Input Re-Sync: On all 8 HDMI inputs and remote sources
- Frame Rate and Format Converters: On all 8 HDMI inputs and remote sources
- Webcam Output: 2x USB-C supporting 720p or 1080p at PGM frame rate
- Total Multi Views: 1x HDMI, 1x Webcam
- Control Panel Connection: Ethernet, Direct connection between panel and chassis, or via network
- Internal Timecode Generator: Yes
- Tally Output: On Blackmagic HDMI and remote cameras
- Ethernet: 1x 1G Ethernet for simple streaming, control panels and internet connection, 1x 10G Ethernet connection for recording
- Computer Interface: 2x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection, 1x Thunderbolt for fill key video out, video input, ethernet to storage, and power
