Blackmagic ATEM 2 M/E Advanced Panel 20

PLN 25,725.45*

net: PLN 20,915.00

Prices incl. VAT plus shipping costs

Product number: SW29291

Manufacturer: Blackmagic Design

EAN: 9338716006803

Manufacturer product number: SWPANELADV2ME20

Delivery time: 7-14 days

Blackmagic ATEM 2 M/E Advanced Panel 20

SKU: BM-SWPANELADV2ME20

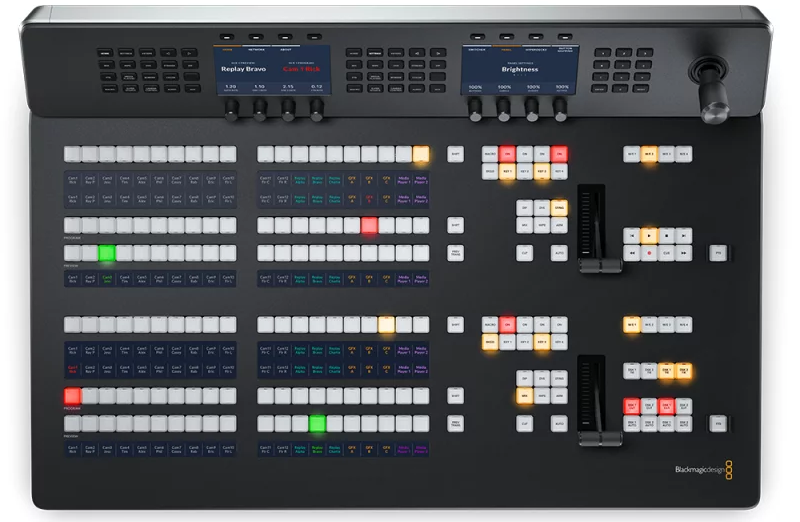

The ATEM 2 M/E Advanced Panel 20 by Blackmagic Design offers two M/E rows, each with 20 input buttons and a separate system control LCD in each row. Additionally, each row can control up to four larger switchers. Both rows and all input buttons feature integrated LCDs for custom labels. Furthermore, each row has its own selection bus.

Connections

Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers
Software Updates: 1 USB-C for firmware updates

Features

Number of Mix/Effect Blocks: 2
Direct Crosspoints: 20
Auxiliary Crosspoints: 40
Crosspoint Button Type: Tri-color LED
Crosspoint Label: LCD with 6 lines of 24 characters each
Next Transition Selectors: 2 BKG, Keyer Buttons 1-4
On-Air Indicators: 8
Power Status Indicators: None
DSK Transition Selectors: Auto, Cut, Tie/Preview x 2
Transition Preview: 2
Transition Rate Indicators: Via main menu
LCD Menu Displays: 2
Menu Control: 2 x 20 buttons
Dedicated Macro Buttons: 2 x 20
Transport Control Buttons: 8
Destination Bus: 2
Source Selection Bus: 2
Fader Bars: 2
3-Axis Joystick: 1
Numeric Keypad: 1
Software Applications: ATEM Software Control Panel

Operating Systems

Mac 10.14 Mojave, Mac 10.15 Catalina, or higher
Windows 10, 64 Bit

Power Requirements

Input Voltage: 2 integrated AC power supplies for 110–240 V
Redundant Power: Yes
Power Consumption: 150 W

Physical Specifications

Dimensions: 725 x 485 x 166 mm
Weight: 11 kg

Environment

Operating Temperature: 0-40 °C
Storage Temperature: -20-60 °C
Relative Humidity: Up to 95 %
