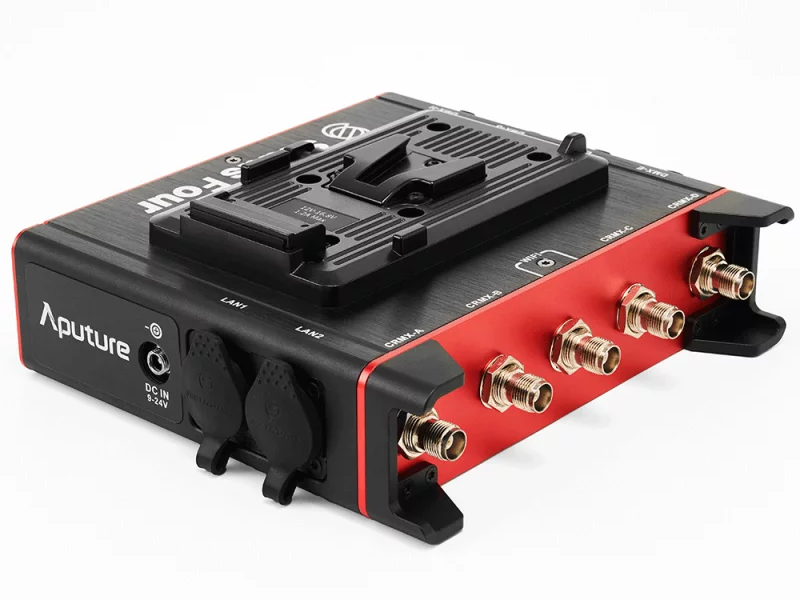

Aputure Sidus Four CRMX Transmitter

Aputure Sidus Four

The Aputure Sidus Four is a four-universe CRMX transmitter with a built-In wireless router and ethernet node supporting up to four additional wired DMX universes. Concurrently, Sidus Four can transmit up to 8 DMX universes.

Features

• Four Universe CRMX Transmitter with Built-In Wireless Router and Ethernet Node Supporting Up to Four Additional Wired DMX Universes
• Built-In Ethernet Switch Allows for Network Expandability
• Four Bidirectional DMX512 Ports =Compatible with CRMX, DMX512, Art-Net and sACN Via Ethernet or Wifi
• Use Four Onboard CRMX Transmitters Individually With Inputs to Each of Four DMX512 Ports For Transmission of Four Separate Wireless Universes
• Intuitive User Interface and Instant Network Vitals for Quick Network Troubleshooting
• CRMX Linking Key Support for Ultra Fast Fixture Pairing
• Ultra-Long Wireless Range: CRMX: 800m, Sidus BT: 300m, Wi-Fi: 800m
• High-Frequency Wi-Fi: Utilizing 5.8G Wi-Fi, the Sidus Four communicates data faster and more stably by avoiding interference from crowded 2.4G networks
• CRMX Frequency Range of 2.4Ghz Ensures No Frequency Overlap with Wifi Functionalities
• 80 Minute Backup Battery Life
• Built-In V-Mount Battery Plate for Extended Battery Operation
• IP65 Dust & Water-Resistant

Technical data

• Connectivity: CRMX, DMX512, Art-Net & sACN via Ethernet and Wifi
• Universe Support: 4 Wireless Universes & 4 Wired Universes
• Ethernet Connectivity: 2x RJ45 Ports at 100Mbps Each
• DMX Connectivity: 4x XLR 5-Pin DMX Bidirectional Female Ports

Operating Frequency

• Wi-Fi: 5.8 GHz at 150 Mbps
• CRMX / Sidus BT: 2.4 GHz

Wireless Range

• Bluetooth: ≤300 m
• Wi-Fi: ≤800 m
• CRMX: ≤800 m

• Wi-Fi Modes: AP mode/STA mode
• CRMX Mode: TX mode

AC Adapter Operating Voltage

• AC In: 100-240V
• DC Out: 9V / 18W

DC Power Input Options

• DC Jack: 5.5/2.5mm DC Barrel Jack (9-24 V) (3 m)
• V-Mount: V-Mount Battery Plate (12-16.8 V)

• Lithium Polymer Battery: 3.7 V 1500 mAH
• Backup Battery Life: 80 min
• Power Consumption: 17 W Max, 6 W Normal (W/O: Charging, Type-C Output)
• Charge Time: 30 min
• IP Rating: IP65
• Operating Temperature: -20°C to 55°C
• Firmware Upgradeable: Sidus BT, USB-C, Sidus Link Pro Wifi
• Cooling Method: Passive Cooling
• Dimensions (excluding antenna): 18.7 x 18.6 x 6.9 cm
• Weight: 1.40 kg

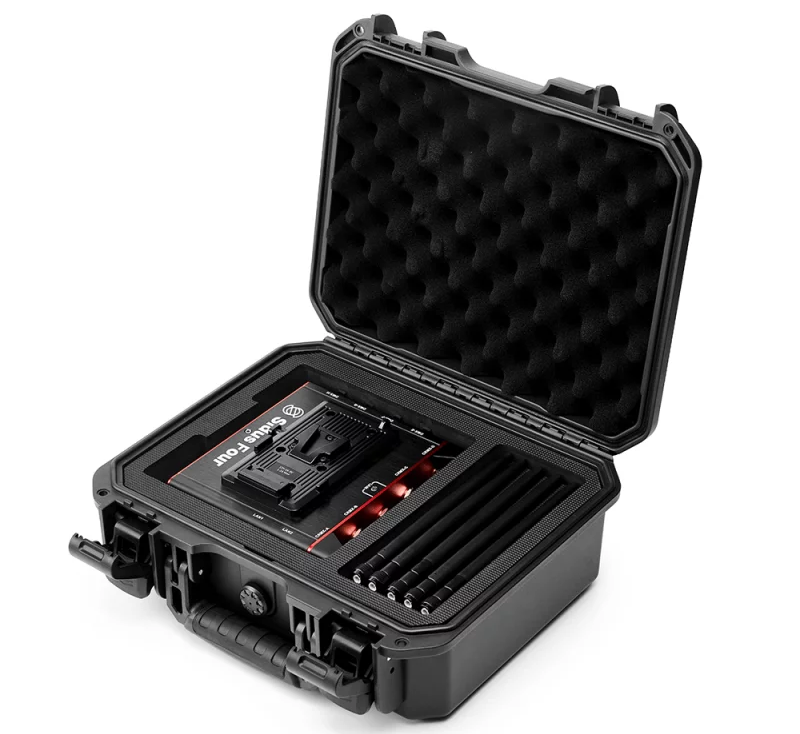

In the box

• 1x Sidus Four
• 5x Dual Band Antenna
• 1x 3/8'' to Baby Pin Receiver Adapter
• 1x Sidus Four 18 W (9 V) Power Adapter
• 1x US Plug
• 1x CN Plug
• 1x AU Plug
• 1x EU Plug
• 1x UK Plug
• 4x 5-Pin XLR Male to 5-Pin XLR Male Adapter
• 1x Sidus Four Hard Case
