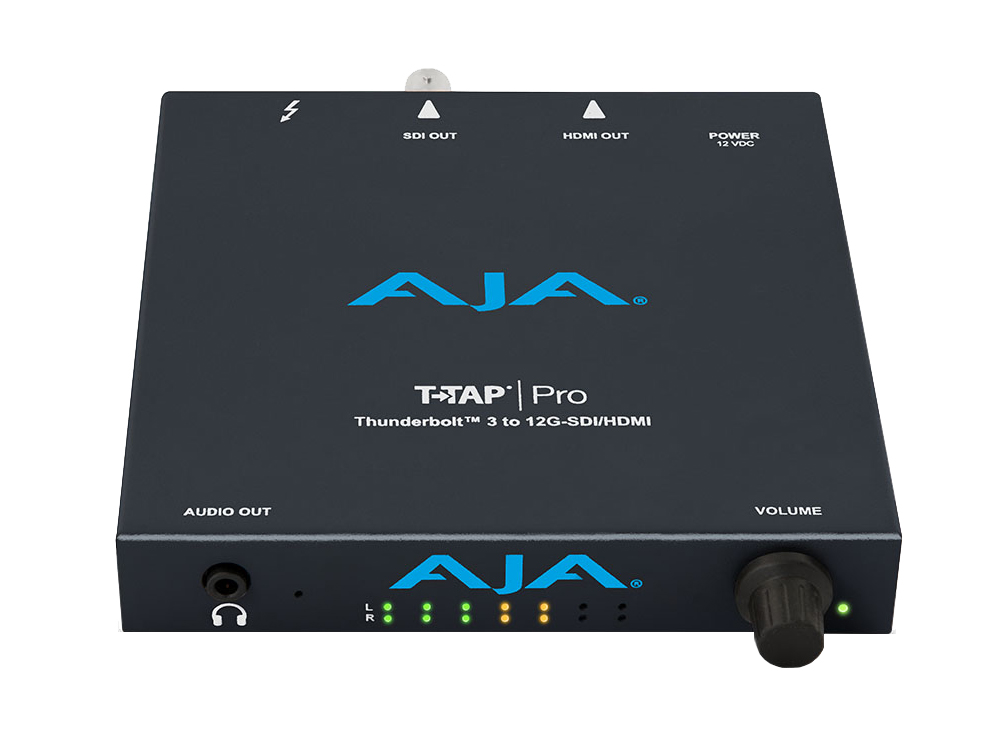

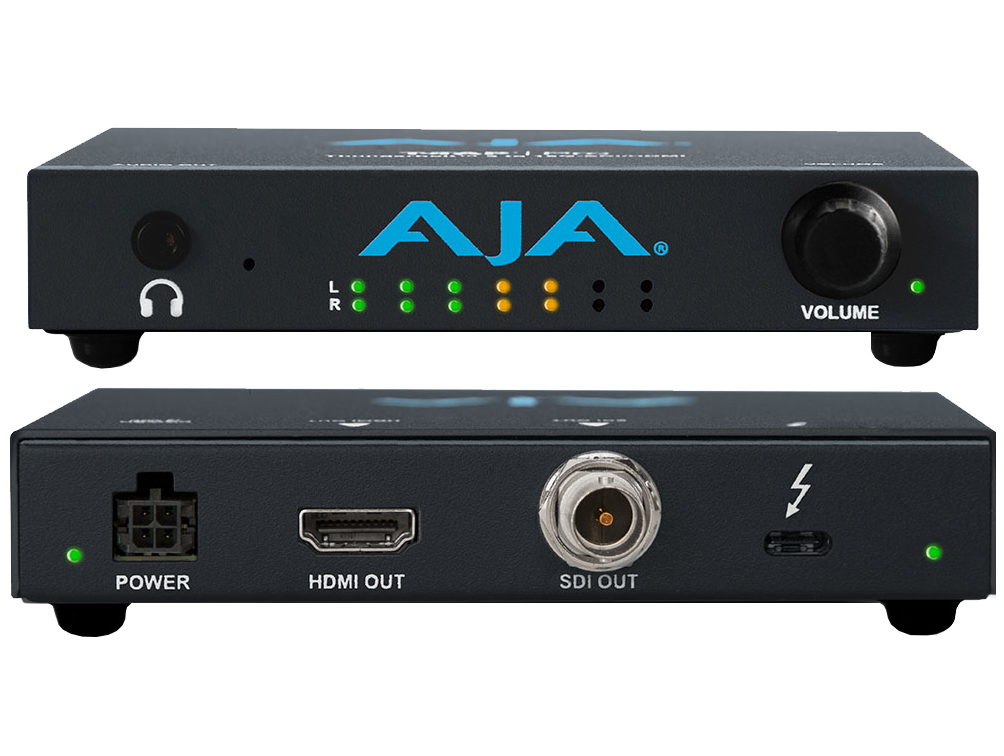

AJA T-TAP Pro
AJA T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.
AJA's T-TAP Pro provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt 3 to deliver high-quality 10- and 12-bit up to UltraHD or 4K 60p video and embedded audio output from any compatible Mac or PC.
Features
- 12G-SDI and HDMI 2.0 connectivity for working with 4K or UltraHD over a single cable up to 60p
- SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI and 270Mbit
- 4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p
- 1x 12G-SDI BNC with 16-channel embedded audio
- 1x HDMI 2.0 with 8-channel embedded audio
- 1x Thunderbolt 3 connector
- Compact, silent, mobile form-factor with Front-panel Audio Levels Reference Display
- RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
- 12-bit and 10-bit LUT support (.cube)
- 4K Closed Caption Support
- VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
- PQ, HLG, HDR10, HDR 10+ and Dolby Vision Support
- HDR Metadata Auto Playback Detection
- Includes support for the Apple M1 chip
- Compatible with OBS Studio, Telestream Wirecast, Adobe Creative Suite, Apple FCP, Avid Media Composer, and many more
- Headphone jack and quick access audio level control for mobile or live environments
- Thunderbolt, Power and Bitfile Connection Status Indicators
- Power Supply Included
- 3 Year Warranty
